[Mini-NDN] result of a topology

[sepehr abdous]

Hello all,

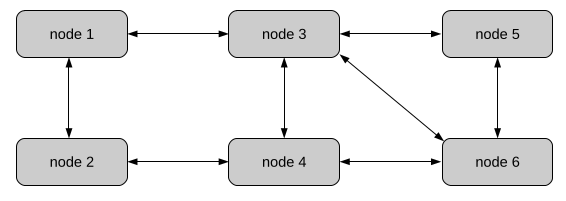

I'm new to mini-ndn and I'm trying to implement the following topology:
[image: Inline image 1]
so I use minindnedit to implement it with the following information:
[image: Inline image 2]

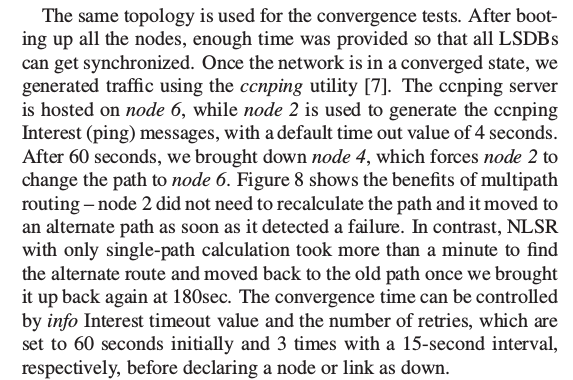

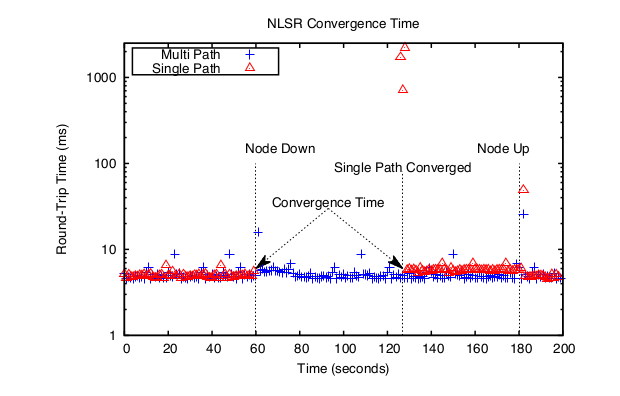

and based on the paper which represents this topology it is expected to get
this figure from it's information:
[image: Inline image 3]
which the blue "+" represents the ping-data in the case that no node fails,

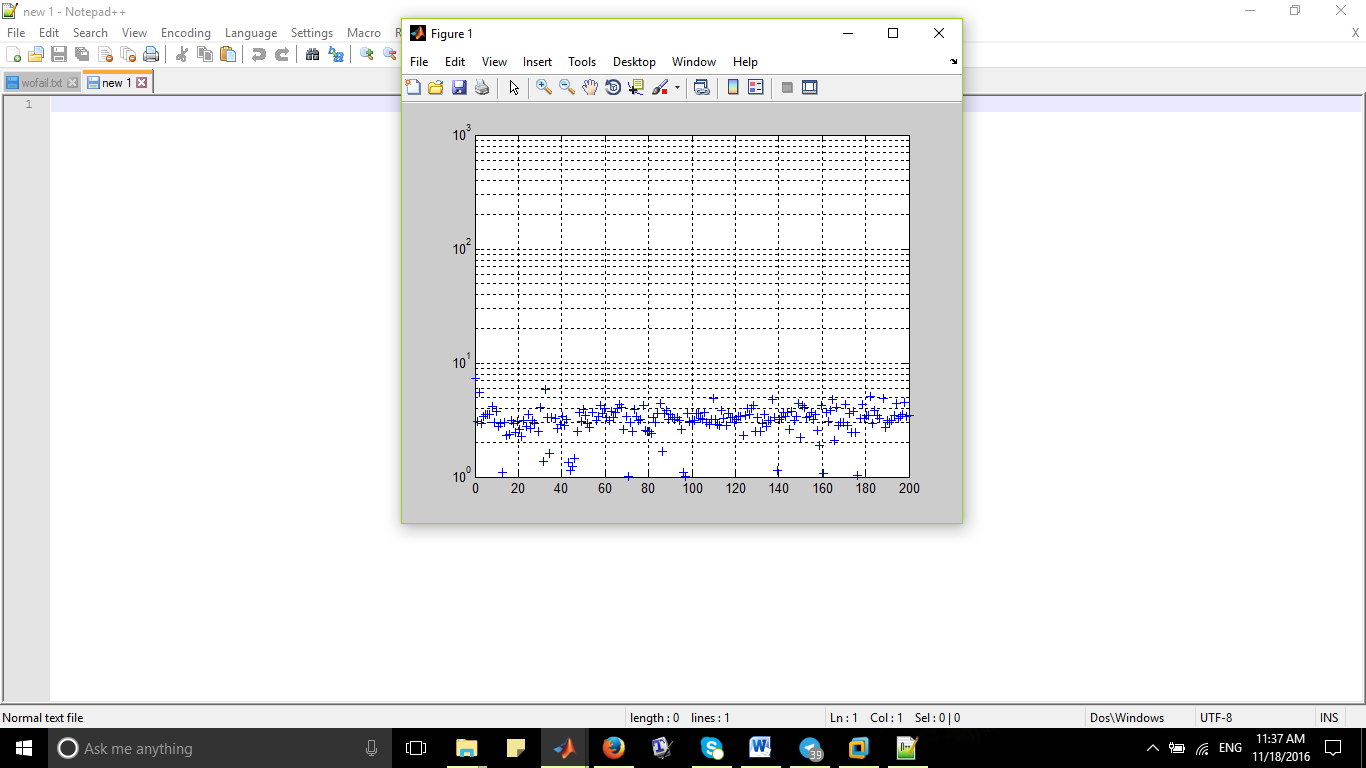

but when I try to implement it using pingall experiment my figure will come
out like this:
[image: Inline image 4]
as you can see there is more swing in the blue '+'s than it is expected,
any idea why it is happening?
thank you

--
